Ekopal RM

Straw And Other Biomass-Fired Boilers

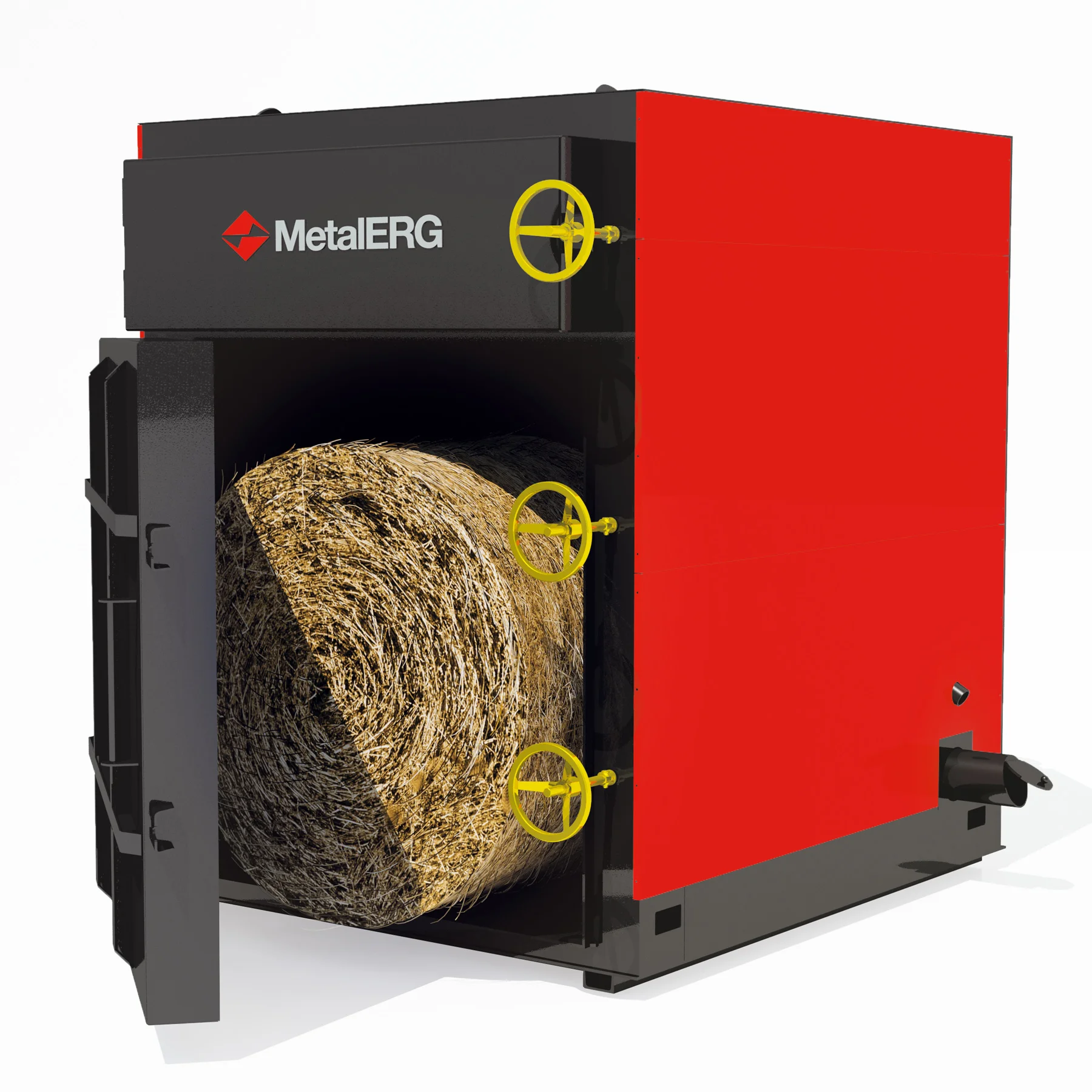

The EKOPAL RM is a low-temperature boiler designed to work in an open system with a storage tank.  The boilers have the biomass combustion (gasification) chamber, afterburner, and a tube type heat exchanger. The EKOPAL RM boiler is fitted with a high-pressure fan with an air damper that adjusts automatically and a microprocessor-based control system, which controls the biomass combustion process based on optional parameters. Even with the variety of sizes that is comes in, the same "countercurrent combustion system" remains the same; the only changes are the shape and size of the combustion chamber, dimensions of heat exchange surface, and the fan type. Currently, we offer boilers in the power range of 85,000 BTU up to 2,000,000 BTU.

The recipients of our straw-fired boilers are typically individual farmers and companies, gardeners, poultry breeders, pig farmers, and dryers, as well as budgetary institutions, or boiler houses where our boilers are mounted in schools and other rural buildings.
